6m 230kg Electric Man Power Mobile Aerial Work Access Self Propelled Scissor Lift Platform
Main Features
1) Self-propelled hydraulic powered.
2) Solid non-marking tires to suit tough outdoor working conditions.
3) Manual platform lowering valve in case of machine breaking down.
4) On-board Diagnostic system to save time and manpower maintenance.
5) Pothole guards and tilt level sensor to guarantee operator's safety.
6) Emergency stop to avoid potensial denger.
7) Flexible operation, low noise, zero emission.
Electric Scissor Lift Specifications:
| SPECIFICATIONS FOR 6M SCISSOR LIFTS |
| Model No | GTJZ0807HD | Platform Size | 1.67*0.74M |
| Capacity | 230KG | Extension Deck Size - G | 0.9M |
| Capacity - Extension Deck | 113KG | Ground Clearance | 0.1M |
| Max Occupancy | 2 | Battery | 4*6V/225Ah |
| Max Working Height - A | 7.80M | Driving Speed (Stowed) | 3.5KM/H |
| Max Working Height - B | 5.80M | Driving Speed (Elevated) | 0.8KM/H |
| Length - C | 1.86M | Max Gradeability | 25% |
| Width - D | 0.76M | Max Tilt | 3°/1.5° |
| Height - E ( Railing Folded) | 1.85M | Weight | 1260KG |
| Width-stowed | 0.76 m | 2 ft 6 in |
| Heigh-stowed | 1.85 m | 6 ft |
| Wheelbase | 1.87 m | 6 ft |
| Size of platform (L*W) | 2.27 m *1.14 m | 7 ft 5 in *3 ft 9 in |
| Productivity | | |
| Lift capacity | 320 kg | 705 lbs |
| Lift capacity-extension deck | 113 kg | 249 lbs |
| Driving speed-raised | 0.8 km/h | 0.5 mph |
| Gradeability | 25% | 25% |
| Turning radius-inside | 0 m | 0 ft |
| Turning radius-outside | 2.23 m | 7 ft 4 in |
| Tire size(solid non-marking) | 381 mm * 127 mm | 15 in * 5 in |
| Power | | |
| Power source | 24V DC (4*6V, 225Ah batteries) | 24V DC (4*6V, 225Ah batteries) |
| Power | 3 KW | 3 KW |
| Weight | | |
| Indoor | 2480 kg | 5467 lbs |
| Standards Compliance | CE/ISO/SGS | CE/ISO/SGS |
Aerial work platform in accordance with the arm exhibition forms can be divided into ZhiBeiShi and crank arm type two kinds, crank arm type aerial work platform using multilevel folding arm combination design, flexible, convenient and can span the barrier, in a lift for more work.Better security, mobile convenience, but cost is tall.Crank arm overhead working flat wagon is widely suitable for use in urban management, power, street lamp, advertising, communications, framing, gardens, transportation, port, airport, port, large industrial and mining companies in sectors such as installation and maintenance and high homework.
Packaging details: The whole machine is packaged in polythene woven cloth and plywood case or according to customers’ requirements.
Delivery details:
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 3 years for wearing parts, 2 years for stuctures
4. Delivery Time: 7-30 days for batch goods.
5. Customers specifying freight forwarders or negotiable shipping methods!
Why choose us?
1. We are Alibaba Assessed 2 years Gold Supplier.
2. We are a factory manufacturing scissor lifts,articulating boom lifts and telescopic boom lifts,best production capability, best quality control, Best Service.
3. 100% QC inspection Before Shippment.
4. CE/IPAF/ISO listed, competitve price.

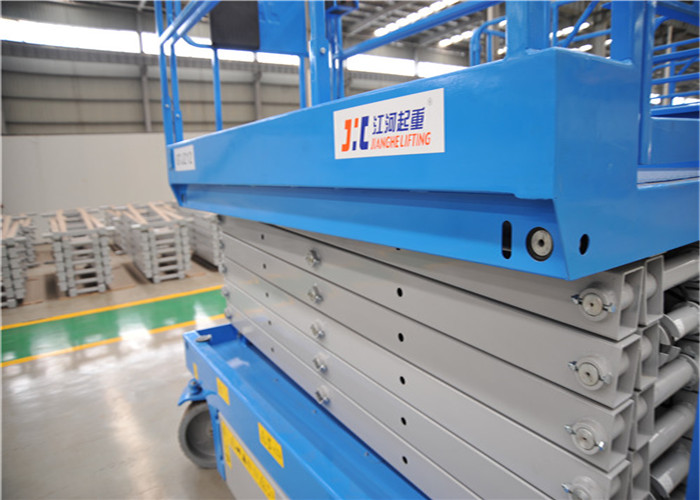

Electric Scissor Lift Photos:
FAQ
Q1: What is the warranty for the aerial work platforms?
A1: For the products, we have 2 years warranty.If any quality problems on our side occured in this period, we will take on the shipping cost and replacement.
Q2: How to Guarantee the qualities?
A2: Most of our main components are imported from USA, Itay and etc, such as perkins and cummins engine.all the export products are carefully examined for 3 times before shipping.
Q3: If qualities problems happen, what should you do?
A3: We have established a muture after-sales network, professional hydraulic engineers and electrical engineers will offer help 24 hours online.
Q4: Will you offer operation and maintenance traninging?
A4: Yes, for all our customers, we have prepared full operation and maintenance courses to help you operate the machine.
Q5: If I buy in large quantities, do you have any preferential policy?
A5: Yes, if buying in large quantities, we will offer finance installment service and old-for-new ones service.
Q6: Can we get support if we have our own market position?
A6: Yes, now we are promoting overseas dealer policy, for dealers purchasing and selling our products in your country, we will offer a series of preferential policies such as competitive prices, preferential order manufacturing, face-to-face training and longer warranty and etc.
